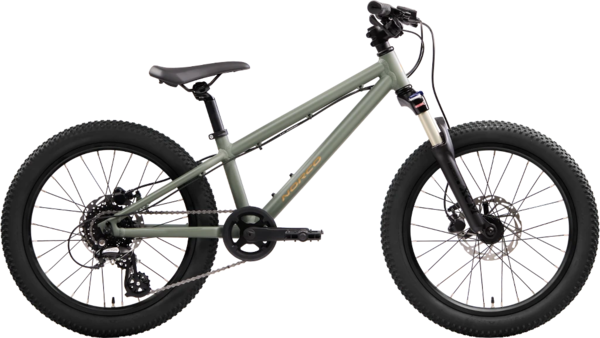

Norco Charger 20
$899.00
Details
Charger Youth 20 is a durable and lightweight kid's bike, perfect for exploring local trails, commuting to school, or going on adventures with the family.
Progressive, kid-focused design.
Charger Youth 20 has kid-friendly geometry, high-quality suspension and gearing, and powerful disc brakes.
Details:
- Versatile and durable frame details.
- Low standover – built just for kids.
- Plush, supportive suspension and gearing.
- High-quality, powerful disc brakes.
- Premium Shimano drivetrain.
- No Other Way Limited Lifetime Warranty.
| Frame Size | Rider Height (cm) | Rider Height (in)] |
|---|---|---|
| One Size | 110 - 127 | 3'8" - 4'3" |
| Wheel Size | 20" |
|---|---|
| Travel (mm front) | 80 |
| Reach | 330 |
| Stack | 433 |
| Head Tube Angle | 65 |
| Fork Offset | 40 |
| Seat Tube Length | 255 |
| Effective Seat Tube Angle | 73 |
| Rear Centre Length | 338 |
| Bottom Bracket Drop | 7 |
| Bottom Bracket Height | 253 |
| Horizontal Top Tube | 462 |
| Wheelbase | 911 |
| Standover | 468 |
| Head Tube Length | 90 |
| Trail | 77 |
| Recommended Seatpost Drop | 0 |
| Maximum Post Insertion | 230 |
| Stem Length | 45 |
| Crank Length | 140 |
| Tire Size | 2.2" – 2.4" |
| Water Bottle Compatible | 1 x 620mL |
Specs
| Frame | Aluminum, 9x135mm QR, 20" |
|---|---|
| Fork | SR Suntour XCR Air w/LO, 63mm, 9X100 QR |
| Rims | Aluminum DW, 28h, 20" MTB |
| Hubs |
Front: Formula DC-1420 , 9x100mm QR, 28h, 6-bolt Rear: Formula DC-1425,10x135mm QR, HG, 28H, 6-bolt |
| Spokes | Stainless Steel w/Brass Nipples - Black |
| Tires | CY Trail, 20x2.25", Wire |
| Bottom Bracket | Sealed bearing, ST 68mm |
| Crankset | Alloy 3pc, 140mm, 28T Narrow Wide |
| Shifters | Shimano Cues SL-U4050-9R, 9sp, Jr short reach |
| Rear Derailleur | Shimano Cues RD-U40100, 9sp, Short Cage Jr |
| Cassette/Freewheel | Shimano Cues CS-LG300-9, 11-36T, 9sp |
| Chain | KMC Z9 |
| Brakes | Tektro HD-M286, Resin Pads |
| Rotors | Tektro. 160mm rotor, 6-bolt |
| Brake Levers | Tektro HD-M286, Hydraulic 2-Finger Jr. Levers |
| Handlebars | Alloy Jr. Riser, 540mm, 30mm Rise |
| Tape/Grips | Norco Youth, 115mm Length |
| Stem | Alloy 35mm Length, 31.8mm Clamp |
| Headset | External Cup Ball Bearing, 1-1/8" EC 34 |
| Seatpost | Norco Alloy 27.2mm, 250mm length |
| Saddle | Norco Youth, Steel Rail |
| Pedals | Jr. MTB Flat, 9/16" |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Olive / One Size / 20-inch | 058817725012 | 1230315054 | 210000040794 |
