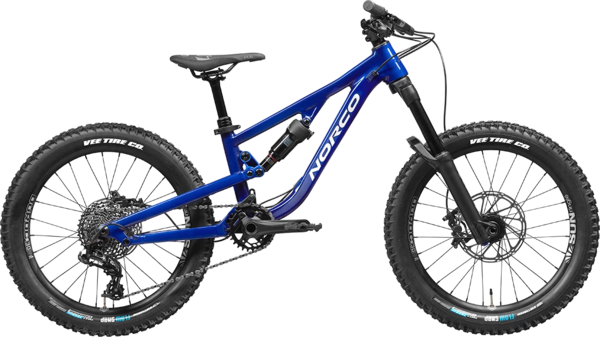

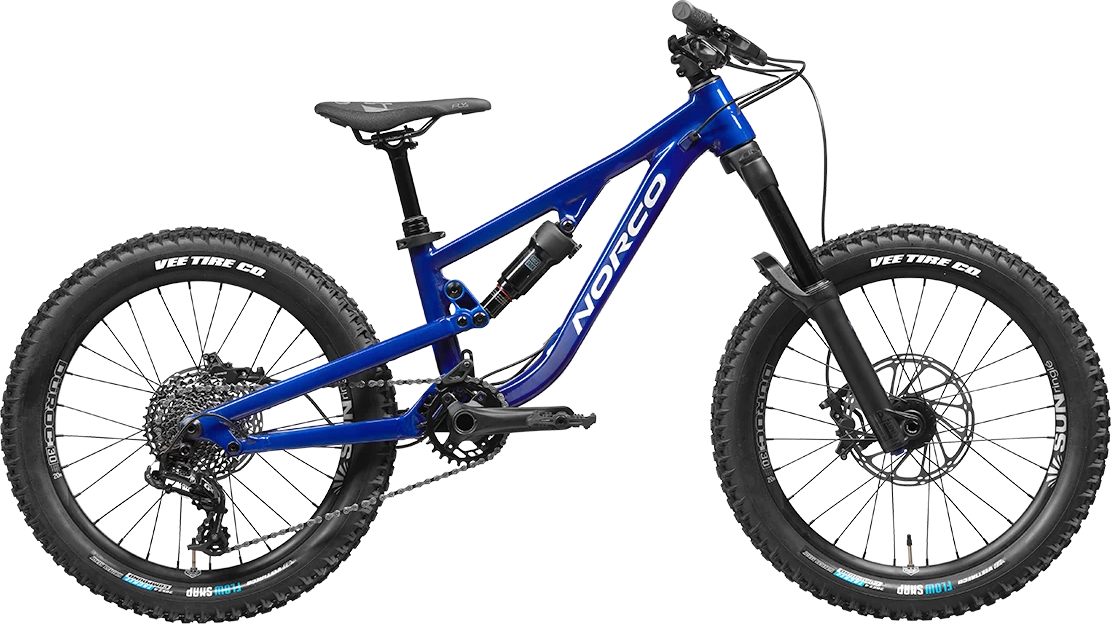

Norco Fluid 1 FS 20
$2,899.00
$3,399.00
Details
The Fluid FS 1 20 is an aggressive trail bike designed to tackle demanding trails.
The Fluid 1 FS 20 features progressive handling, low standover, youth-tuned suspension, and a dropper that is optimized for 7-10-year-old riders below 90 pounds.
The quality and build reflect everything we put into our full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.
Details
- Holistic design for real, uncompromised?performance.
- Suspension components built for young riders.
- Designed to fit small and perform big.
- Adult quality and durability, but built to fit.
| Travel (mm front/mm rear) | 120/100 | |
|---|---|---|
| Reach | 320 | |
| Stack | 443 | |
| HTA | Head Tube Angle | 64 |
| OS | Fork Offset | 410 |
| ST | Seat Tube Length | 255 |
| STA | Effective Seat Tube Angle | 75 |
| RC | Rear Centre Length | 355 |
| BB | Bottom Bracket Rise/Drop | 10 |
| BBH | Bottom Bracket Height | 270 |
| HTT | Horizontal Top Tube | 439 |
| WB | Wheelbase | 940 |
| SOH | Standover | 500 |
| HT | Head Tube Length | 90 |
| Trail | 83 | |
| Recommended Seatpost Drop | 80 | |
| Maximum Post Insertion | 130 | |
| Stem Length | 35 | |
| Crank Length | 140 | |
| Tire Size | 2.35" - 2.6" |
Specs
| Frame | 6061 Alloy Frame, 100mm Travel, Tapered Head Tube |
|---|---|
| Fork | Manitou J-Unit Expert 20", Alloy Steerer, 120mm Travel |
| Rear Shock | Rock Shox Deluxe R, 170x30mm |
| Rims | Stan's Flow K 20", 28H |
| Hubs | Front Hub: Bear Pawls, 15x110mm Boost, 6 Bolt/Rear Hub: Bear Pawls, 12x148mm, HG, 6 Bolt |
| Spokes | Stainless, Black |
| Tires | Vee Flow Snap 2.4", Enduro Core, TR |
| Bottom Bracket | BSA Threaded |
| Crankset | Alloy 2 Piece, 28T Narrow Wide, 127mm |
| Shifters | SRAM GX |
| Rear Derailleur | SRAM GX Short Cage |
| Cassette/Freewheel | SRAM PG-1030, 11-36T, 10 Speed |
| Chain | KMC X10 |
| Brakes | SRAM G2 R, Organic Pads |
| Brake Levers | SRAM G2 R |
| Handlebars | SDG Slater, 640mm, 20mm Rise |
| Tape/Grips | SDG Slater |
| Stem | 6061 Alloy, 35mm Rise, 31.8mm Clamp |
| Headset | Sealed Cartridge Bearing, Tapered |
| Seatpost | TranzX YSP18B, 31.6mm, 100mm, Kid's Tune |
| Saddle | SDG Fly Jr. |
| Pedals | SDG Slater |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Blue/Chrome / One Size / 20-inch | 1230012010 | 210000038620 |
