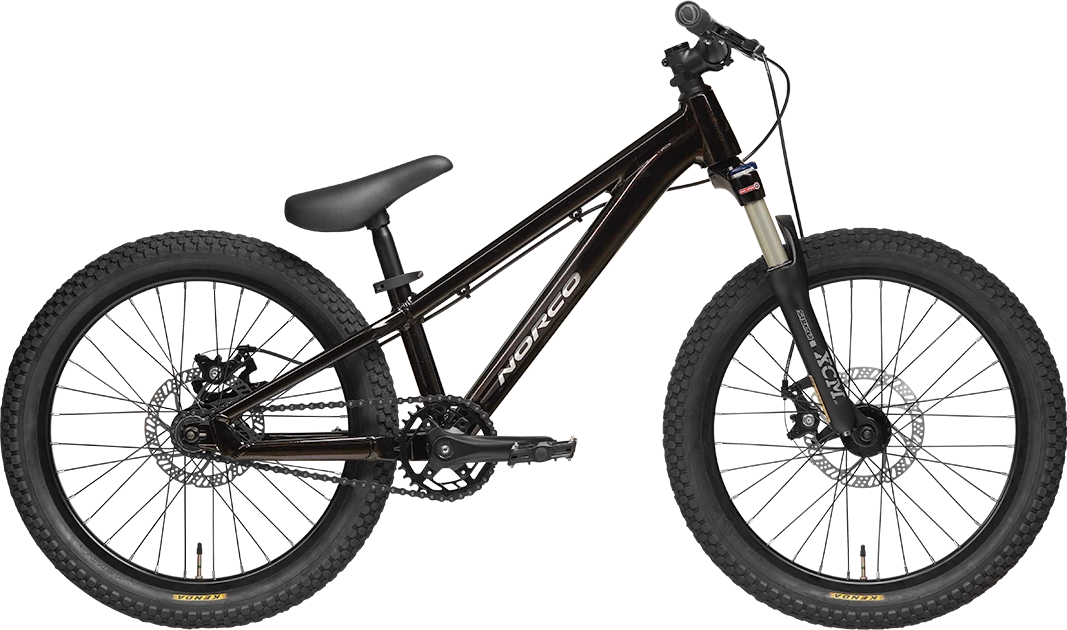

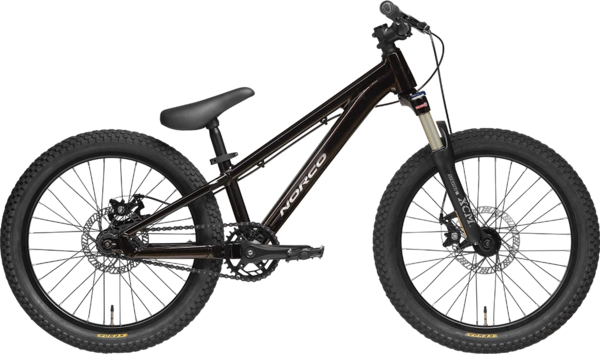

Norco Rampage 2.2
$809.00
$1,149.00
Details
The Rampage 2 20" is the ultimate evolution in Dirt Jumpers with a light frame that gets young riders up to speed fast with the perfect mix of agility and stability.
The Rampage 2 20" is Dirt Jump hungry. It's purpose-built for big air and features components hand-selected to rip.
Reasons It's Rad
- Built to shred and look good doin' it.
- Lightweight aluminum frame built to last.
- Hand-picked components for function and reliability.
- Evolved frame features push the potential.
- Two wheel sizes and two models for the ideal ride.
| Wheel Size (in) | 20" |
|---|---|
| Travel (mm front) | 100 |
| Reach (mm) | 332 |
| Stack (mm) | 435 |
| Head Tube Angle (°) | 69 |
| Fork Offset (mm) | 40 |
| Seat Tube Length (mm) | 230 |
| Effective Seat Tube Angle (°) | 73 |
| Rear Centre Length (mm) | 310 |
| Bottom Bracket Rise/Drop (mm) | -17 |
| Bottom Bracket Height (mm) | 245 |
| Horizontal Top Tube (mm) | 465 |
| Wheelbase (mm) | 845 |
| Standover (mm) | 442 |
| Head Tube Length (mm) | 90 |
| Trail (mm) | 58 |
| Stem Length (mm) | 35 |
| Crank Length (mm) | 127 |
| Tire Size (in) | 2.1" - 2.3" |
| 20" Wheel Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| Growing In Period | 3'8" - 3' 9 1/2" | 110 - 114 |
| Optimal Fit | 3' 9 1/2" - 4'3" | 114 - 125.5 |
Specs
| Frame | X6 Aluminum DJ 20" |
|---|---|
| Fork | SR Suntour XCM Jr Air, 80mm Travel, Alloy Stanchions |
| Rims | Aluminum MD16, 20", Double Wall |
| Hubs |
Front: Nutted Alloy, 6 Bolt Rear: Nutted Alloy, Freewheel, 6 Bolt |
| Spokes | Stainless, Black |
| Tires | Kenda K-905 2.3" Skinwall |
| Bottom Bracket | Square Taper, BSA Threaded |
| Crankset | Alloy, 30T Narrow Wide, 127mm |
| Cassette/Freewheel | 13T Freewheel |
| Chain | KMC Z1, Black |
| Brakes | Tektro MD-280 Mechanical Disc |
| Rotors | Tektro 160mm |
| Brake Levers | Tektro Alloy |
| Handlebars | 6061 Butted Aluminum, 640mm, 25mm Rise |
| Tape/Grips | Norco Jr, Lock-On |
| Stem | Alloy, 35mm Length, 31.8mm Clamp |
| Headset | Sealed Bearing, Tapered |
| Seatpost | Integrated with Saddle |
| Saddle | Norco One-Piece |
| Pedals | Composite Jr. Flat |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black/Chrome / 20-inch | 058817585005 | 1220112050 | 210000037192 |
