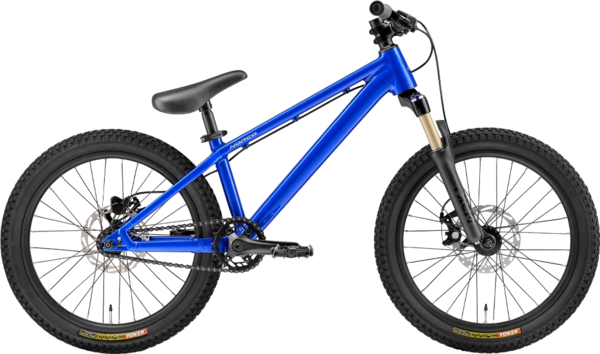

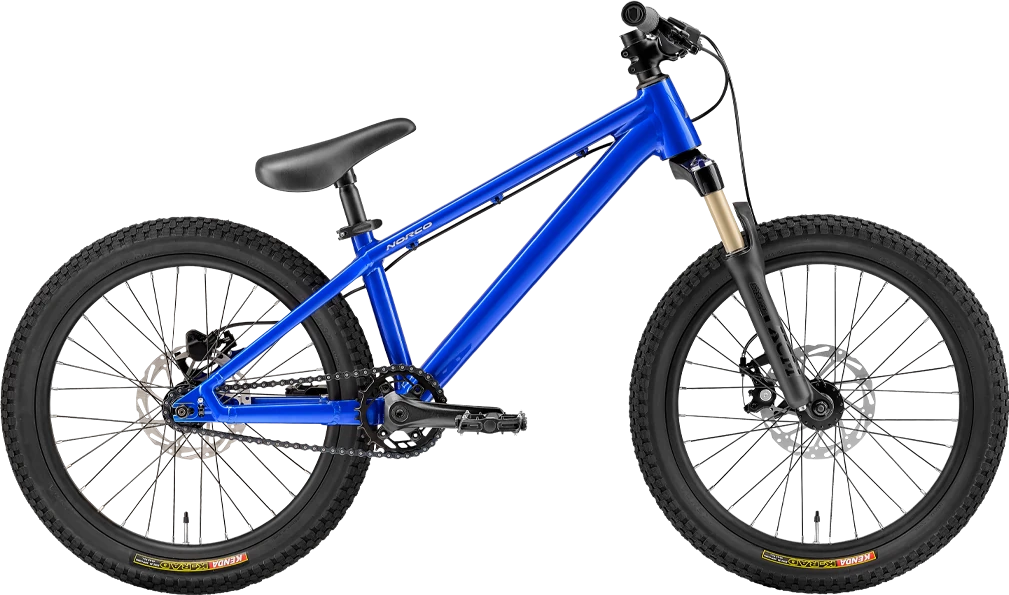

Norco Rampage 20
$999.00
Details
The updated Rampage focuses Norco’s two decades of riding and building dirt jumpers into a platform where modern design, engineering, and jump-specific spec come together to push style and adrenaline to the next level. With help from our team rider Matt MacDuff, we’ve made some significant updates.
Purpose-built for big air, this bike will literally up your game at the dirt jumps, pump track, or your local skatepark.
| Frame Size | One Size |
|---|---|
| Wheel Size (mm) | 20" |
| Travel (mm front) | 80 |
| Reach (mm) | 345 |
| Stack (mm) | 444 |
| Head Tube Angle | 68.5° |
| Fork Offset (mm) | 40 |
| Seat Tube Length (mm) | 260 |
| Effective Seat Tube Angle | 75° |
| Rear Centre Length (mm) | 295 |
| Bottom Bracket Drop (mm) | 0 |
| Bottom Bracket Height (mm) | 261.5 |
| Horizontal Top Tube (mm) | 464 |
| Wheelbase (mm) | 858 |
| Standover (mm) | TBC |
| Head Tube Length (mm) | 100 |
| Trail (mm) | 60 |
| Maximum Post Insertion (mm) | TBC |
| Stem Length (mm) | 35 |
| Crank Length (mm) | 127 |
| Tire Size | 2.35" – 2.5" |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| One Size | 110 - 127 | 3'8" - 4'3" |
Specs
| Frame | Aluminum DJ 26" |
|---|---|
| Fork | RST Dirt ,100 mm, 9x100mm |
| Rims | Alex MUS 30, 32h, F/R-26" |
| Hubs |
Front: KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt Rear: KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt |
| Spokes | Stainless Steel, 14g |
| Tires | Kenda K-Rad, 26x2.30", Wire Bead |
| Bottom Bracket | Sealed Cartridge, ISIS 73mm |
| Crankset | Prowheel Forged 3pc, 30T, 165mm |
| Cassette/Freewheel | Single speed, 14T |
| Chain | KMC Z1, 1/2 x 3/32" |
| Brakes | Tektro MD-280, Mechanical, Resin pads |
| Rotors | TR 160-24, 160mm , 6 bolt |
| Brake Levers | Tektro Alloy |
| Handlebars | Norco Alloy, 760mm, 45mm rise |
| Tape/Grips | Norco w/small flange, 130mm length |
| Stem | Norco, 45mm Length, 31.8 Clamp |
| Headset | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Seatpost | Integrated w/saddle, 27.2mm ID, 200mm Length |
| Saddle | Norco One Piece |
| Pedals | FP 870ZP resin BMX flat pedal with metal pins |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Radiant Blue / One Size / 20-inch | 058817720741 | 1220015054 | 210000040790 |
