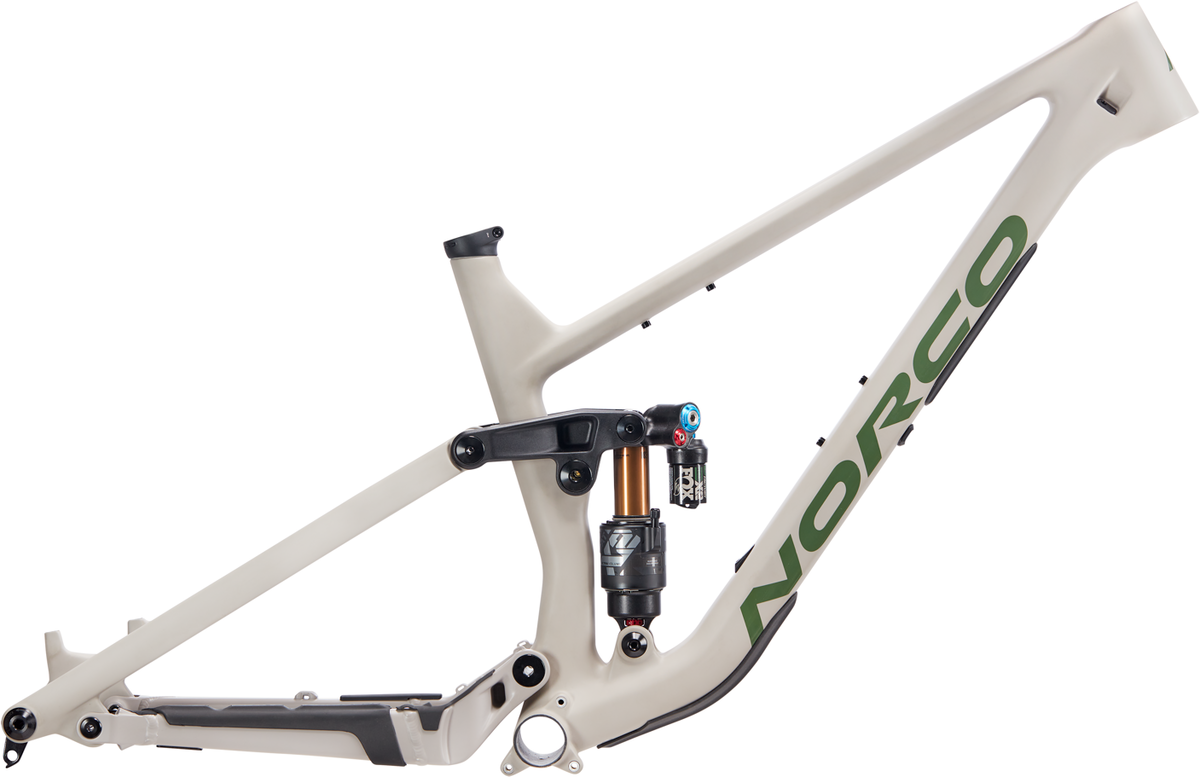

Norco Sight C Frame Kit
Details
The Sight C Frame Kit boosts your All-Mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling.
To make the Sight Carbon, we had to re-think how you connect with the trail.
With maximum front and rear wheel grip on climbs and descents, Sight C maintains momentum and cadence in technical situations and allows the suspension to move freely without absorbing drivetrain energy.
Reasons It's Rad:
- Precise tune and fit perfects every ride.
- Max standover with long travel dropper posts.
- Sweating the little stuff makes the ride better.
- Four piston brakes with 200/180mm rotors.
- Features the Ride Aligned Design System.
Wheel size:
Sizes Small – X-Large: 27.5-inch or 29-inch

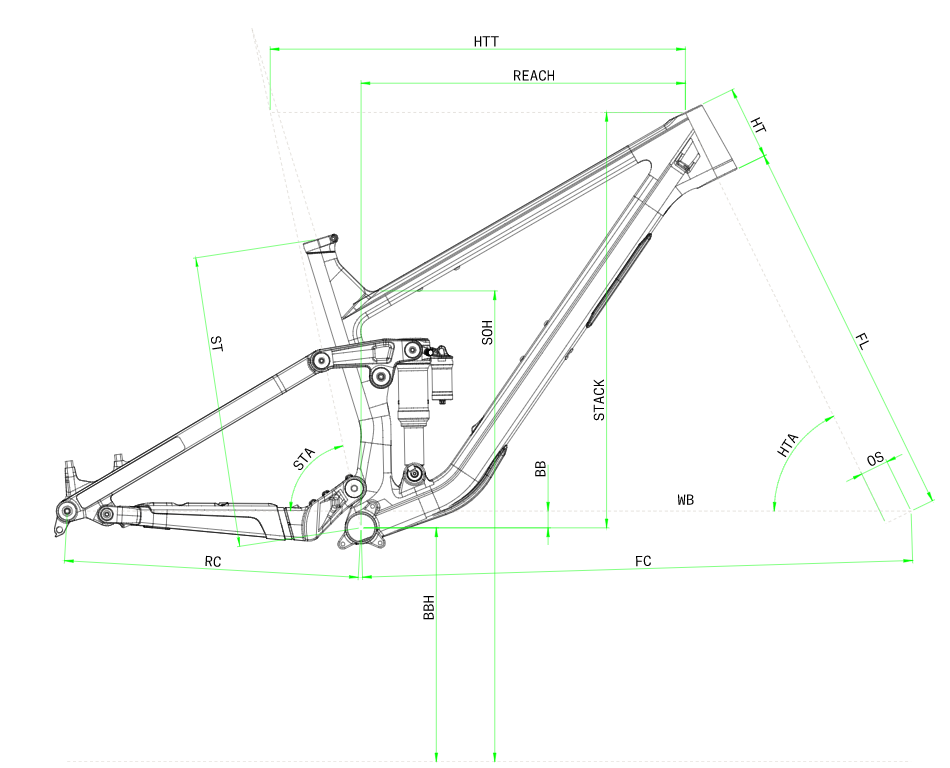

| Frame Size | Small | Medium | Large | X-Large | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|---|---|---|
| Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
| Travel (mm Front/mm Rear) | 160/150 | |||||||
| Reach (mm) | 425 | 455 | 485 | 515 | 425 | 455 | 485 | 515 |
| Head Tube Angle | 63.5 | 64 | ||||||
| Fork Offset (mm) | 37 | 42 | ||||||
| Seat Tube Length (mm) | 370 | 395 | 435 | 465 | 370 | 395 | 435 | 465 |
| Effective Seat Tube Angle | 77 | 77.3 | 77.7 | 78 | 77 | 77.3 | 77.7 | 78 |
| Rear Center Length (mm) | 430 | 435 | 440 | 445 | 430 | 435 | 440 | 445 |
| Bottom Bracket Drop (mm) | 15 | 25 | ||||||
| Bottom Bracket Height (mm) | 342 | 350 | ||||||
| Horizontal Top Tube Length (mm) | 560 | 588 | 617 | 645 | 564 | 593 | 621 | 649 |
| Wheel Base (mm) | 1180 | 1220 | 1259 | 1299 | 1183 | 1222 | 1262 | 1301 |
| Stand Over Height (mm) | 668 | 677 | 683 | 701 | 682 | 687 | 704 | 726 |
| Head Tube Length (mm) | 100 | 110 | 120 | 130 | 90 | 100 | 110 | 120 |
| Trail (mm) | 137 | 136 | ||||||
| Recommended Seat Post Drop (mm) | 150 | 170 | 200 | 150 | 170 | 200 | ||
| Maximum Post Insertion (mm) | 225 | 250 | 270 | 225 | 250 | 270 | ||
| Stem Length (mm) | 40 | |||||||
| Crank Length (mm) | 170 | |||||||
| Tire Size | 2.35" – 2.6" | |||||||
| Water Bottle Compatible | 1 x 620 mL | 1 x 750 mL | 1 x 620 mL | 1 x 750 mL | ||||
| Size | Height (inches) | Height (cm) |
|---|---|---|
| X-Small | 4'9 1/2" - 5'1 1/2" | 146 - 156cm |
| Small | 5'1" - 5'5" | 155 - 165cm |
| Medium | 5'4 1/2" - 5'8 1/2" | 164 - 174cm |
| Large | 5'8" - 6'0" | 173 - 183cm |
| X-Large | 5'11 1/2" - 6' 3 1/2" | 181 - 191cm |
Due to supply chain issues, specs are subject to change without notice.
Specs
| Frame | Sight carbon main frame and seatstay , 150mm travel |
|---|---|
| Fork | Sold Separately |
| Rear Shock | Fox Factory FLOAT X2, HSC/LSC, HSR/LSR, 185x52.5 Trunnion |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Grey/Green / Large / 27.5-inch | 058817547621 | 0620012756 | 210000038763 |
| Grey/Green / X-Large / 27.5-inch | 058817547638 | 0620012757 | 210000038765 |
| Grey/Green / Small / 29-inch | 058817547645 | 0620012954 | 210000038753 |
| Grey/Green / Medium / 29-inch | 058817547669 | 0620012955 | 210000038755 |
| Grey/Green / Large / 29-inch | 058817547676 | 0620012956 | 210000038751 |
| Grey/Green / X-Large / 29-inch | 058817547683 | 0620012957 | 210000038757 |
