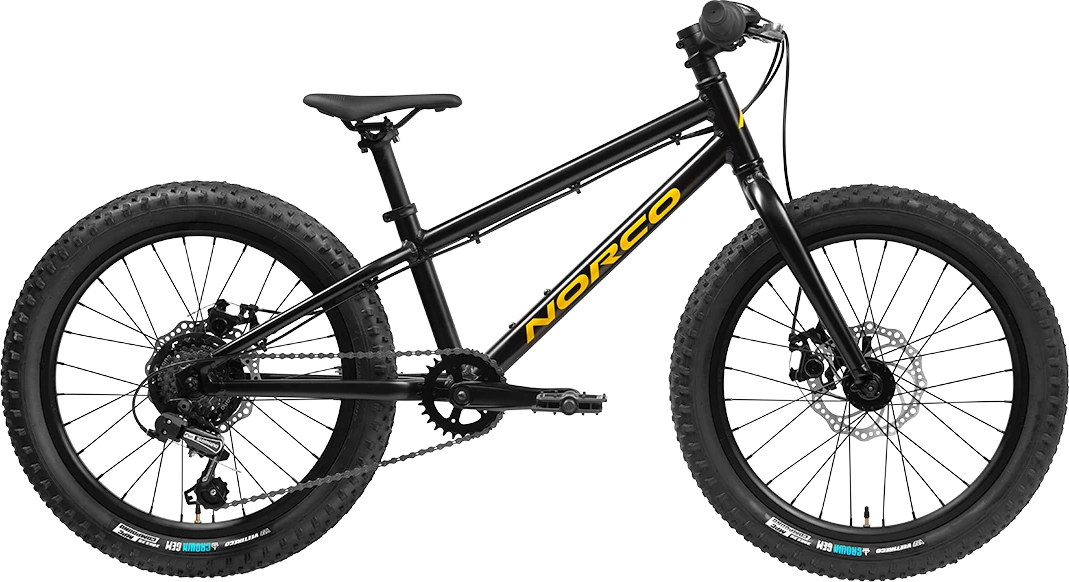

Norco Storm 20 Disc
$583.00
$729.00
Details
Bringing every advantage to the party, the Storm 20 Disc allows groms to find the best line, nail every shift and stop on a dime.
Get good on a fully rigid rig with Storm. The Storm 20 Disc's lightweight, durable aluminum frame and fork combine with a quality drivetrain, disc brakes and optimized fit for riders from 3'9" to 4'3", building and a love for dirt that'll last a lifetime.
Reasons It's Rad
- Beautifully crafted for light weight and durability.
- Easy gearing for quicker starts and easy climbs.
- Quality brakes with short reach levers.
- Models to meet the needs of every young rider.
| Wheel Size (in) | 20" |
|---|---|
| Reach (mm) | 325 |
| Stack (mm) | 405 |
| Head Tube Angle (°) | 67 |
| Seat Tube Length (mm) | 255 |
| Effective Seat Tube Angle (°) | 71 |
| Rear Centre Length (mm) | 350 |
| Bottom Bracket Drop (mm) | 12 |
| Bottom Bracket Height (mm) | 245 |
| Horizontal Top Tube (mm) | 465 |
| Wheelbase (mm) | 874 |
| Head Tube Length (mm) | 110 |
| Crank Length (mm) | 140 |
| 20" Wheel Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| Growing In Period | 3'8" - 3' 9 1/2" | 111 - 114 |
| Optimal Fit | 3' 9 1/2" - 4'3" | 114 - 129 |
Specs
| Frame | Aluminum HT |
|---|---|
| Fork | Rigid Alloy |
| Rims | Aluminum Double Wall, 28H, 20" |
| Hubs |
Front: Aluminum, 9x100mm, 6 Bolt Rear: Aluminum 10x135mm, HG, 6 Bolt |
| Spokes | Stainless, Black |
| Tires | Vee Crown Gem 2.25" |
| Bottom Bracket | Sealed Bearing, Square Taper |
| Crankset | Alloy 3 Piece, 28T Narrow Wide, 140mm |
| Shifters | SunRace Twist Shift |
| Rear Derailleur | SunRace RDM36 |
| Cassette/Freewheel | SunRace MF, 14-28T, 6 Speed |
| Chain | KMC Z6 |
| Brakes | Mechanical Disc |
| Rotors | 160mm |
| Brake Levers | Alloy Jr., Reach Adjust |
| Handlebars | Alloy Jr., 540mm, 30mm Rise |
| Tape/Grips | Norco Youth |
| Stem | Alloy, 45mm Length, 31.8mm Clamp |
| Headset | External Cup |
| Seatpost | Alloy 27.2mm |
| Saddle | Norco Youth |
| Pedals | Jr. MTB Flat, Black |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|

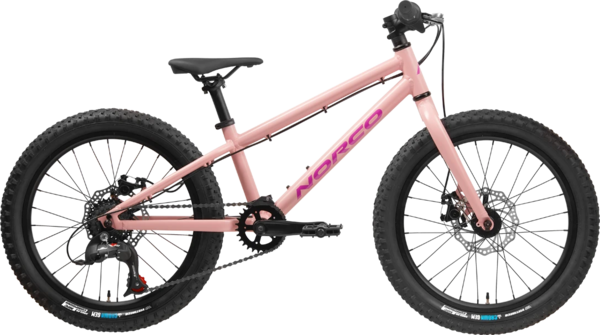

| Pink/Purple / 20-inch | 058817620133 | 1210322010 |
